Pull-Back Motors Explained, and How to Make Them Last

Quick answer
A pull-back motor is a coiled spring and a small gearbox. Pulling the car backwards winds the spring; letting go releases it through the gears to the wheels. Most "not working" problems come from hair or carpet fibre on the axle, over-winding, or pushing the car forwards by hand. Clean the axle, pull back only 10 to 15 cm on a hard floor, and never force the wheels forwards.

What is inside a pull-back car

Under the floor of a pull-back model, usually between the rear wheels, is a small sealed plastic box. Inside it are three parts:

1. A flat spiral spring, like the spring in a mechanical watch.
2. A gear train of three or four small plastic or metal gears.
3. A clutch, a gear that slides sideways to engage or disengage.

The gearbox connects to one axle, usually the rear. The other axle simply rolls.

How it works, step by step

1. You pull the car backwards. The wheels turn the axle in reverse. The clutch gear engages and the gears wind the spring tighter.
2. You hold it. The spring is now storing energy, trying to unwind.
3. You let go. The spring unwinds through the gears, which multiply its speed, and drives the wheels forwards.
4. The spring runs out. The clutch slips back to neutral so the car can roll freely until it stops.

The gearing is the clever part. The spring unwinds slowly and powerfully, and the gears turn that into fast wheel rotation. That is why a short pull gives a surprisingly fast run.

A pull-back motor is a tiny wind-up watch that happens to have wheels.

The five habits that wear a pull-back motor out

1. Pulling back too far

The spring has a limit. Once it is fully wound, pulling further makes the clutch skip with a clicking sound. Every skip wears the gear teeth. Ten to fifteen centimetres of pull is plenty. If you hear clicking, you have gone too far.

2. Pushing the car forwards by hand

Rolling a pull-back car forwards against the gearbox forces the gears backwards through the clutch. It is the most common way kids break these motors. Let the car roll on its own, or lift it and put it down.

3. Running on carpet, rugs or sand

Carpet fibres, hair and sand wrap around the driven axle and get pulled into the gearbox. After a few weeks the wheels drag, then stop. Use pull-back cars on tiles, marble, wooden floors or a table.

4. Crashing into walls at full speed

The spring is still pushing when the car hits the wall, so the shock goes straight into the gear teeth. It also chips paint on a metal body. Aim for open floor, or put a cushion at the end of the run.

5. Holding the wheels while the spring is wound

Picking up a wound car and gripping the spinning wheels strains the gears in the same way as a crash. Let it run out on the floor first.

Collector tip: If you mainly display your model, do not wind it at all. A pull-back motor that never runs never wears. Run it once when you unbox it to check it works, then let it be a display piece.

Pull-back car not working? Try this

Work through these in order. Most cars are fixed by step 2.

Step 1: check that it is actually a driven axle problem. Turn the car over. Spin each rear wheel gently with your finger. If one axle feels "geared" (a light, even resistance with a soft whirr) and the other spins freely, the motor is connected. If both spin freely with no resistance, the clutch may be stuck in neutral (see step 4).

Step 2: clean the axles. Look closely where the axle enters the wheel and the gearbox. Hair and fibre are almost always there. Pull them out with tweezers or a needle. Spin the wheels again and try a short pull-back.

Step 3: try a hard, smooth floor. On a rug or soft mat the spring may not have enough grip to wind. Test on tiles or a table before deciding the motor is broken.

Step 4: free a stuck clutch. Hold the car upside down, pull it back very gently a few times by turning the wheels backwards with your fingers, then set it down and pull back 10 cm. This often reseats a clutch gear that has slipped.

Step 5: listen.

• Clicking or grinding when you pull back: gear teeth are worn or a gear is cracked.
• Nothing at all, wheels locked: something is jammed inside the gearbox.
• Winds but runs very weakly: the spring may be fatigued, or there is still debris on the axle.

Step 6: stop there. The gearbox is usually sealed or held by small screws under the car. Opening it risks losing the spring, which is very hard to rewind. If a new model stops working within the replacement window, use the replacement instead of opening it. Blinkit handles returns and replacements under its own policy.

Does it matter for a collector's model?

For a display model, the pull-back motor is a bonus rather than the point. It does add two things collectors appreciate:

• Weight low in the car, which makes the model feel more planted.
• Something to show people. A pull-back run across a table is the fastest way to get a non-collector interested.

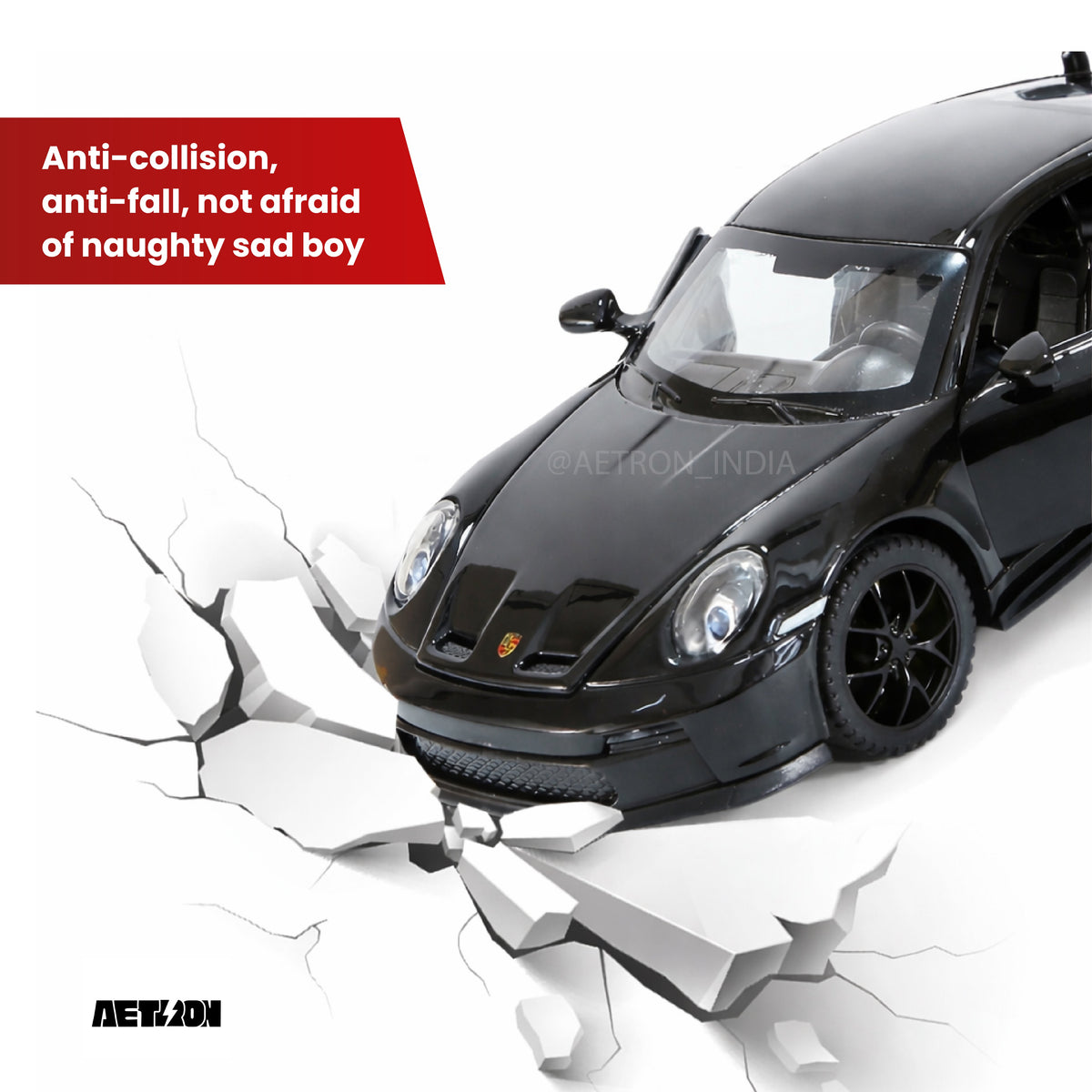

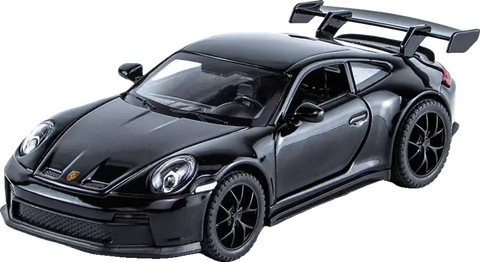

Aetron's 911 GT3 and Lamborghini Revuelto both have pull-back motors along with their metal bodies and opening doors.

Pull-back vs friction vs battery: a quick comparison

Type	How it stores energy	Typical run	Best for
Pull-back	Spring wound by pulling backwards	Short, fast burst	Tabletop fun, display models
Friction	Flywheel spun by pushing forwards	Longer, slower roll	Younger kids
Battery or remote	Electric motor	Minutes	Play, not display

A friction car is the one you push forwards, which is exactly what you should not do with a pull-back car. If you have both at home, tell kids which is which.

Frequently asked questions

Why is my pull-back car not working?

The most common causes are hair or carpet fibre wrapped around the rear axle, a clutch gear that has slipped out of place, or worn gears from pushing the car forwards by hand. Clean the axle first and test on a hard floor.

How far should I pull back a pull-back car?

About 10 to 15 cm. If you hear clicking, you have wound the spring fully and should stop.

Can I push a pull-back car forwards?

It is best not to. Forcing the wheels forwards turns the gearbox against the clutch and wears the gears.

Can a pull-back motor be repaired?

Sometimes, by cleaning the axle or reseating the clutch. Opening the sealed gearbox is risky because the spring is hard to rewind. For a new model, use the seller's replacement window instead.

Do all Aetron models have pull-back motors?

The 911 GT3 1:32 and Lamborghini Revuelto 1:24 do. Check the product listing for each model.
